Adjustable Car Battery Tray – Complete Manufacturing Package
$24.90
Get production-ready 3D models, files, and manufacturing drawings to fabricate this heavy-duty adjustable battery tray. This comprehensive project includes everything you need for immediate production.
Get production-ready 3D models, files, and manufacturing drawings to fabricate this heavy-duty adjustable battery tray. This comprehensive project includes everything you need for immediate production.

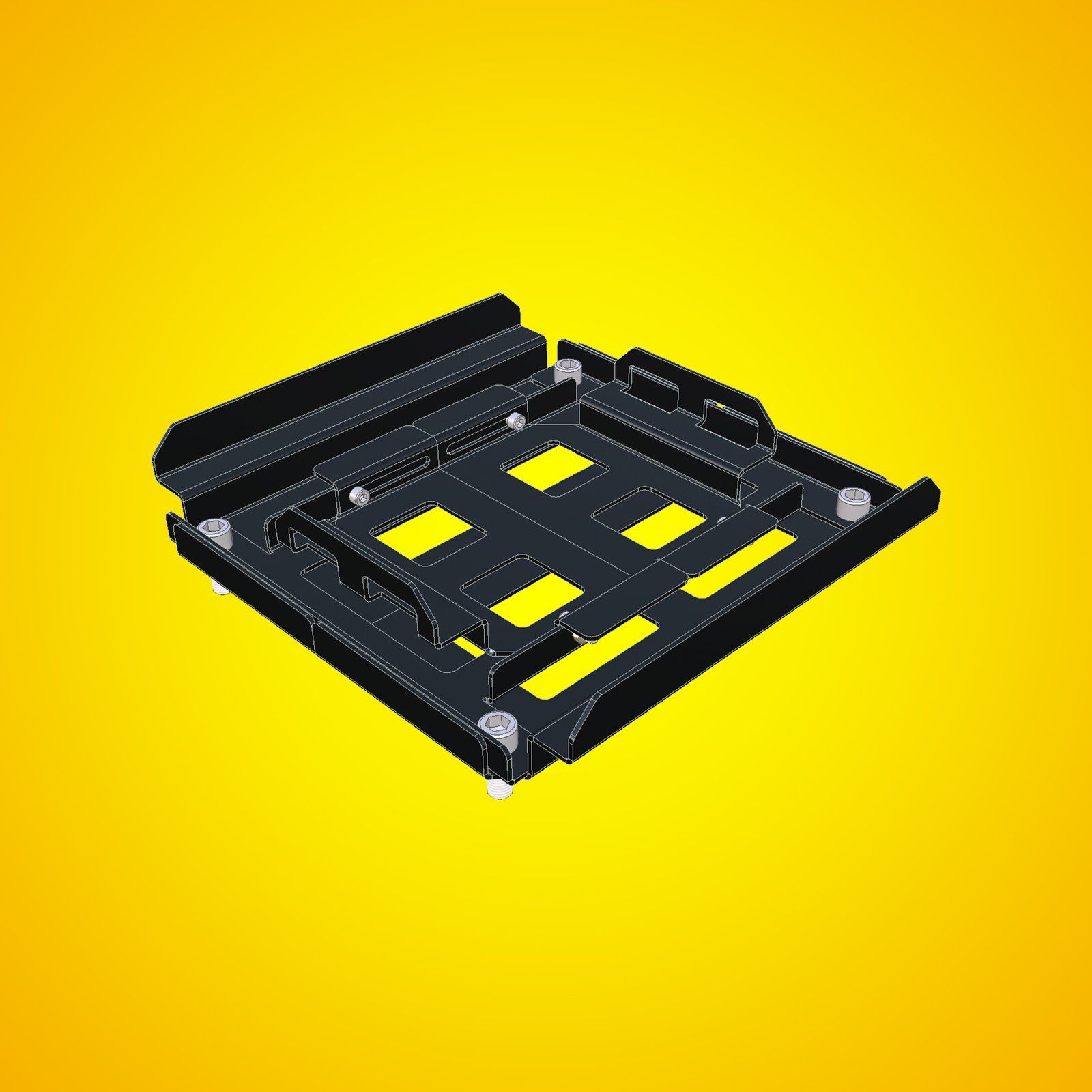

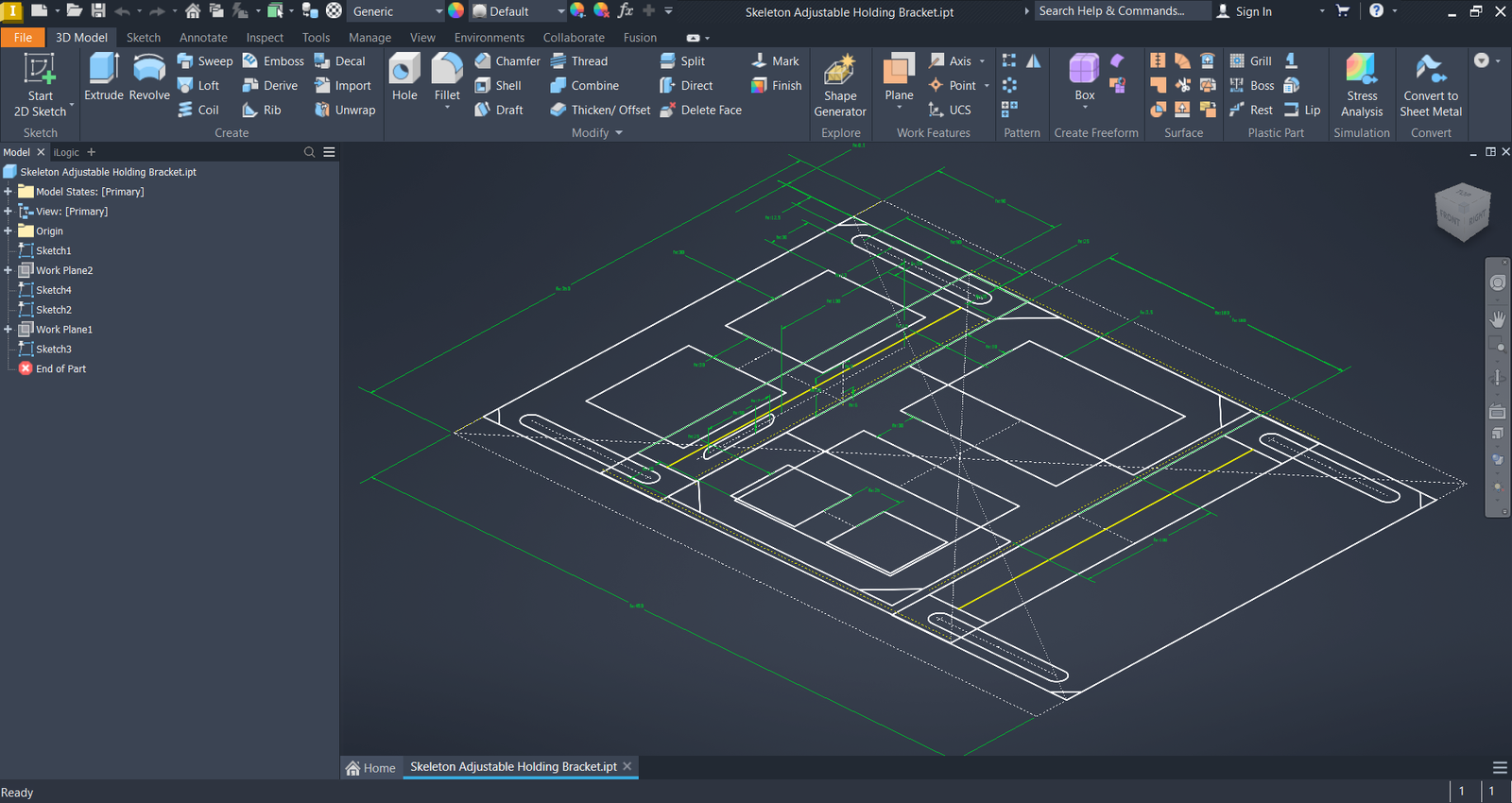

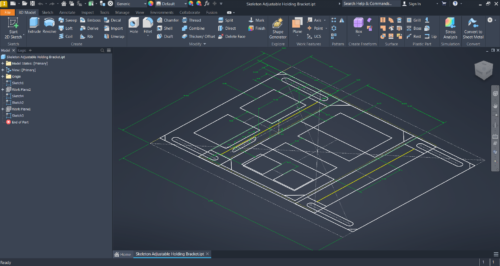

Developed using the Skeleton Design methodology in Autodesk Inventor, this parametric design accommodates various battery sizes with X-axis (horizontal) adjustment from 350 to 500 mm and Y-axis (vertical) adjustment from 250 to 320 mm. The battery secures with two mounting straps attached to slots in the Y-axis adjustable supports. Robust construction with strategic cutouts reduces weight while maintaining structural integrity.
Project Includes:
- 3D model in STEP and GLB formats

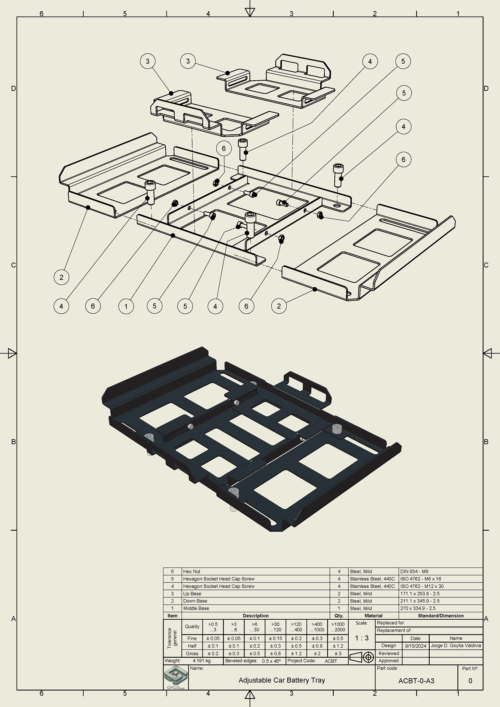

- Manufacturing and assembly drawings in PDF and DWG formats (ISO/DIN standards)
- Laser cutting drawings in DXF format

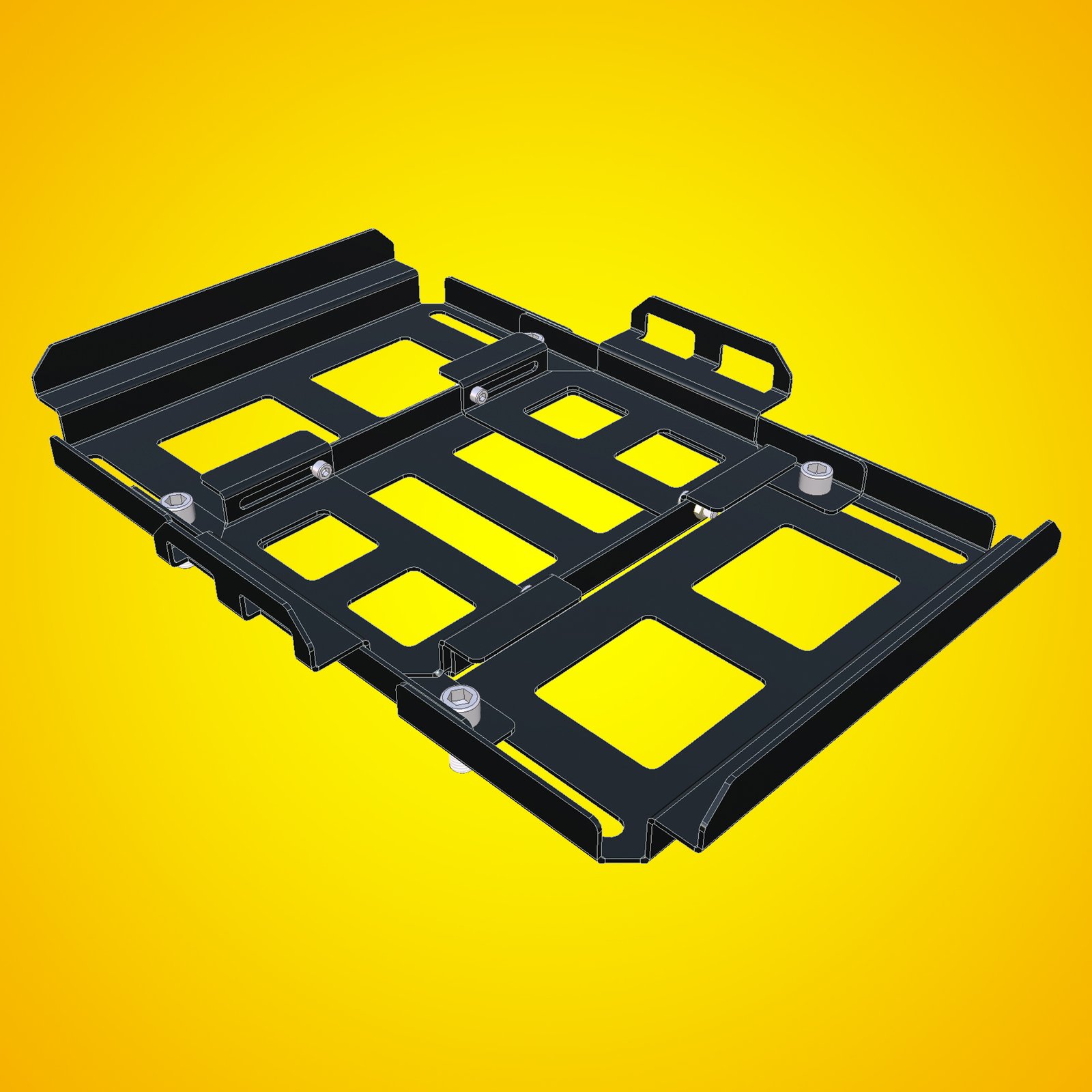

- High-quality rendered images
